Conformance to ISI / IEC60898-1 No. of Poles : 1 to 4 , Rated current upto 63A. Available in B and C curves . Suitable for performance at 55 degrees Celsius .
CECO group of companies was promoted in 1973 in Calcutta. The purpose of the Company was to bring new technology in the field of Electrical & Electronics for the benefit of the Industry. The Company has been doing business in the field of manufacturing, assembling and trading of Electrical and Electronics controls of all types and description viz. Microprocessor based Programmable Controllers, Counters, Power Distribution, Motor Controls etc. The Company has ability and infrastructure to manufacture for other industries and applications and is leading in the field of Industrial electrical and automation.
Conformance to ISI / IEC60898-1 No. of Poles : 1 to 4 , Rated current upto 63A. Available in B and C curves . Suitable for performance at 55 degrees Celsius .
Based on MCU ( Micro controller unit ) for real time processing and high precision . Free Voltage connection AC 100-260 V . Applicable to invertor circuits . Ambient Temperature -20 to +70 degrees Celsius . Sharing of terminal contact type and penetration type to conveniently apply the product to a variety of installation conditions. Wide Current Control Range from 0.5 A to 80 A . Protection against Overload , Phase Unbalance , Phase Failure , Phase Reversal , Stall Rotor , Ground fault ( optional ) , in one single unit .
Based on MCU ( Micro controller unit ) for real time processing and high precision . Definite /Inverse time / Thermal Inverse time options Protection against Overload , Undercurrent , Phase Unbalance , Phase Failure , Phase Reversal , Stall Rotor , Ground fault , Short Circuit in one single unit . Upto 5 motor failure events may be stored Separated display part using cables 3 phase digital Ampere meter Free voltage connection AC/DC 85 ~260V . Can be used upto 65A with inbuilt 3CT and upto 650A with external CT . Applicable to invertor circuits . Optional Modbus communication or 4 ~ 20 mA Output . Ambient temperature -20 to +60 degrees Celsius .
Range suitable from 9.7 ~ 62 KVAR at 400V ~ 440V AC Available in MC9 ~ MC100. AC or DC coil for selection . Finger proof design. DIN rail or screw mountable. Conformance to CE, UL, & CSA
Convenience of connection & mounting by terminal options such as Cage Clamp, Fast-on, Solder pin as well as Screw Terminal. Can be driven from the output of PLC, photoelectric switch, proximity switch. Conformance to CE, UL & CCC Reduced rate of power consumption by 78%
CE, UL, CSA, Certified 4,6,8 Pole units available . AC ( 50/60 Hz dual ) & DC Control Voltage 16A continuous current Ith DIN rail or screw mountable. High operating ambient temperature up to 55 C Up to 8 in-built auxiliary contacts in just 3 variants.
Widest range of 2,3 & 4 Pole contactors from 6A to 800A with 25 models in 8 frame sizes. High electrical & mechanical life. Compact size & easy connection. CE, UL, CSA, Lloyds , ABS certified. Fuse-less type 2 co-ordination charts available High operating ambient no derating available up to 55 Very low pick-up & hold on VA for all ratings & with standard dual frequency AC coils (50/60Hz). In built 1NO+ 1NC up to 22A, 2NO+2NC in-built from 32A up to 800A. Complies with International Environment standard ROHS Universal AC/DC Coil i.e. 100~240 V AC / DC from 100A & above. Can withstand high vibration ( Opened: 2g, Closed: 4g) Overload Relays have contactor mounting & independent version with in-built single phase Prevention. Remote reset unit is available on request. 2 pole Contactors 2 pole AC contactors available with AC control voltage definite purpose / 8A , 17A , 21A , 23A , 26A , 32A at 415 V AC3 rating . 2 pole DC contactors available with 2 NO + 2NC built in auxiliary contacts in 30A , 60A and 100A ratings at 250V , DC 2~5 suitable for ac or DC control voltage .
3 Frame Size 32AF: 0.1, 0.16….32A (16 Steps) High Breaking Capacity 15KA to 1000 KA at 415V AC Various Accessories Front Mounting Auxiliary Switch Side Mounting Auxiliary Switch Any Trip Alarm Switch Magnetic Trip Alarm Switch Shunt Release Under Voltage Release Under Voltage Release With Switch Insulation Barrier Extended Handle Phase BusBar Device Enclosure
Available in Fixed/ Draw-Out version & Draw-Out enclosed version. Rated braking time : 3Cycle Rated short time withstand current : kA/3sec Available connection between main body and cradle: Clip and Tulip type Switching durability mechanical: 20,000 times , electrical : 20,000 times Tested at KERI , KEMA as per IEC standard Applied standard: new standard IEC 62271-100[2008][M2, E2, (list 1,2,3)class 2]
Rated Short time current: 6.3KA/1s (16.4kA peak) Perfect compatibility with an existing product. Diversified Customer-oriented Safety Equipment. Detachable type, metal Shutter installed. Applied standard IEC 60470, IEC 60228-1
Conformance to CE , UL , KEMA ,Lloyds ,etc. Exceptional current limiting device and double break contacts Optimum co-ordination technique ( Cascading and Discrimination ) Short circuit breaking capacity 50 ~ 150kA at 415 VAC 50 Hz and Ics= 100 % Icu. Various adjustable trip mechanisms available with 40 to 100 % adjustable overload and adjustable short circuit 1.5 ~ 10 In . Also , earth fault release from 0.2 to 1.0 In . Guaranteed Type 2 co-ordination between circuit breaker and contactor, relay . Wide range of optimized auxiliaries and accessories . Communication facility using RS485 ( MODBUS ) .
Conformance to CE, UL , KEMA ,etc. Compact Size and high interrupting capacities Available in 2/3/4 pole version from 50 ~ 1200 A Frame Sizes . Short Circuit Breaking Capacity from 14 ~ 85 kA having Ics = 100 % Icu , Ui =1000V and Uimp= 8kV Can be provided with accessories for varied application and allows easy installation especially for electrical accessories . Same external dimension of MCCB and ELCB .
ACB Metasol Series Conformance to IEC & ANSI ( includes nuclear plant standards ) Total solution with advanced trip relay for measurement , diagnosis , analysis and communication as well as protective functions for absolute protective co-ordination and electric power monitoring system . Maximum short circuit capacity : 150 kA ( 6300 AF at 500 VAC ) , Ics = 100 % Icu 2000/4000/6300 AF , 3 Ampere Frame Sizes in 3 pole and 4 pole . N phase current conducting capacity : 100 % . Rated Impulse Voltage ( Uimp ) = 12kV & rated insulation voltage 1000 VAC for all models. The terminal connection can be modified between vertical type and horizontal type by rotating the terminals through 90 degrees .

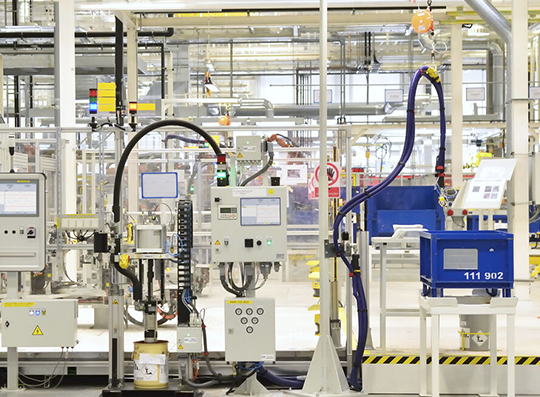

The company has been one of the leading system integrator cum panel builder since 1973 . It undertakes panel projects involving supply of PLC, Drives ( VFD ) , Networking Products, Field Instruments, HMI , SCADA including software development, installation & commissioning of automation systems. It has manufacturing capacity of more than 75 CNC fabricated panels at a time on the shopfloor. It has successfully delivered more than 5000 projects and has installed more than 1.5 lac VFDs across India in various applications including hoisting , press , winding , HVAC , elevators , ringframes, etc. Some of the reputed clients include IOCL , HPCL , SAIL , Jindal Group , Raymonds , etc. The company has been catering to the following segments: Steel Plants Cement Plants Coal Handling Plants Water Treatment Plant Special Purpose Machine EOT Crane /Elevators Power Plants Refineries Sugar & Paper Plants Plastic Extrusion Machine Textile Spinning & Weaving Machine
